Series-1

Series-1

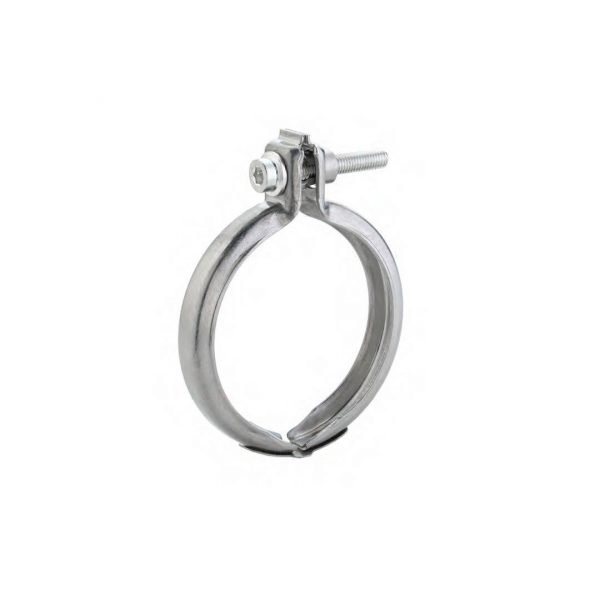

Invicta V-Profile Clamps use an optimized design that reduces weight and maximizes space. The result is improved fuel consumption and a more flexible use of space around the application.

The advantages at a glance

  • Quick assembly
  • Compact design
  • Lightweight
  • Easy handling
  • Wide range of existing profiles



Why choose a V-Profile Clamp?

  • Easy to handle and provide ease of assembly.
  • Compact design requires minimal space
  • Quick to assemble – only one bolt to tighten to produce a secure joint
  • Lightweight, reducing the total weight of the system



Methods of Operation

  • The profile clamp’s method of operation is based on the principle of an inclined plane.
  • When the closure bolt is tightened, this exerts circumferential force on the profile segments.
  • The two halves of the flange are pressed together by means of the profile.
  • The circumferential force that is exerted is translated into considerably higher axial force.

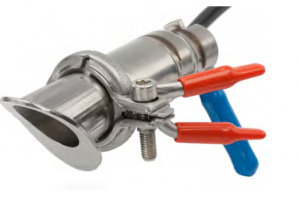

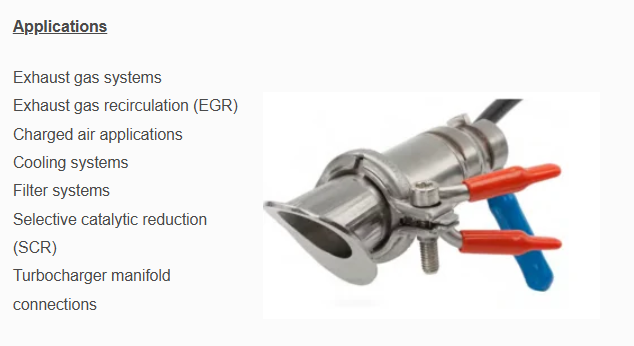

Applications

  • Exhaust gas systems
  • Exhaust gas recirculation (EGR)
  • Charged air applications
  • Cooling systems
  • Filter systems
  • Selective catalytic reduction (SCR)
  • Turbocharger manifold connections
